Clearskin is a 100% solid aliphatic roll on coating. There are two versions available as roll on.

  1. 12-15 minute pot life and set to touch in 30 minutes.
  2. 1 hour pot life and 45 minutes set to touch.

Both produce a clear hard high gloss coating. Both 1&2 can be supplied in colors and both have excellent chemical and UV resistance. #1 has been found to have excellent electrical properties. 16 mils of coating can resist 10000 volts. Making it a great insulator.

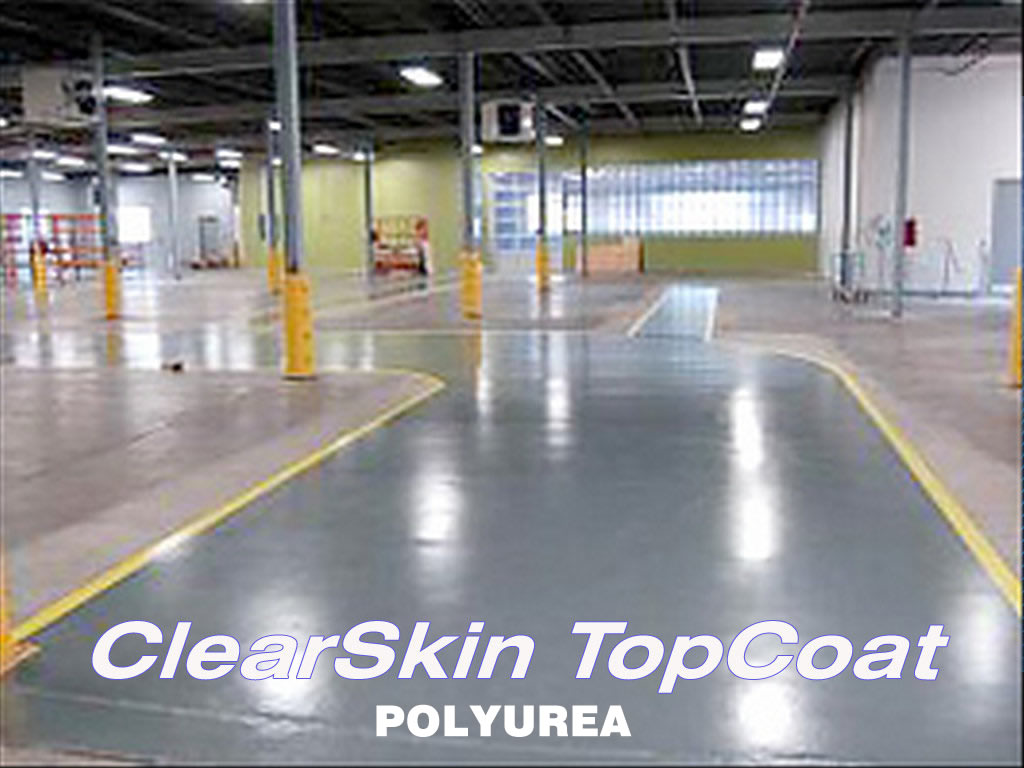

Clearskin makes an excellent coating for steel, concrete, wood and marine applications. Its ability to cure fast with no VOCs reduces downtime to return to service. Clearskin has excellent water and chemical resistance to meet any condition. Clearskin is optically clear but can be pigmented and can have anti-corrosive additives if needed.

Technical Application Data

ClearSkin is a two component 100% solids aliphatic formulation which does not contain VOCs.
Fast-Set ClearSkin Sprayable may be applied by a standard 2-component high pressure spray machine or hand-held cartridge gun. ClearSkin Rollable is typically applied by squeegee, roller or brush. Coated substrate surfaces must be clean/dry and free of contaminates, dust, etc. Application temperatures range from 40°F to 110°F. Functional operation temperature range is from -40°F to 150°F. Final top-coat application surface is glossy smooth. Coverage at 16 mils is 100 sq. ft./ mixed gal.

Gallery

Chemical Resistance Chart

Mix Ratios

Mix Ratios For Rollables:
Mix Ratios for rollables are all 1:1 by volume
All gel times are dependent on ambient air and substrate temperatures.

Mix Ratios For Sprayables: All Sprayables use a mix ratio of 1A:1B with gel times of 5-15 seconds. These systems utilize a 2K high or low pressure dispensing machine such as a Graco Reactor or a hand-held cartridge gun.

Physical Properties

ClearSkin Rollable Physical Properties
Optical Clearity Visual Clear
Flex Modulus (psi) ASTM D790 100k Flex ; 250k Hard
Tensile Strength (psi) ASTM D412 3500 Flex ; 4200 Hard
Elongation (%) ASTM D2256 100 Flex ; 250 Hard
Hardness -Shore D ASTM D785 50 Flex ; 75 Hard
Abrasion -TaberCS17 ASTM D4060 50 mg/1k cycles
Tear Strength ASTM D624 200 lbs/ linear in.
ClearSkin Fast-Set Sprayable Properties
Optical Clearity Visual Clear
Flex Modulus ASTM D790 200k psi
Tensile Strength ASTM D412  4100 psi
Elongation ASTM D2256  150%
Hardness -Shore D ASTM D785 50
Abrasion -TaberCS17 ASTM D4060 50 mg/1k cycles
Tear Strength ASTM D624 200 lbs/ linear in.

Adhesion Results

Adhesion Results of Typical Substrates per ASTM D-4541 Elcometer

Concrete- Primed >300 psi Concrete cohesive failure; excellent bonding
Steel- Primed >1000 psi Excellent bonding
Wood- Primed >250 psi Wood failure; excellent bonding
This technical data information is accurate to the best of our knowledge. SuperSkinSystems™ Inc. makes no warranty, expressed or implied within the materials on this website, its use or with its any application. SuperSkinSystems™ Inc. shall not be liable for material or application related injuries, material non-conformance, application failures or any consequential damage by the use of this product.
